SPL Parts 2013+ Subaru BRZ/Toyota 86 / 2015+ Subaru WRX/STI Rear Lower Camber Arms

$769.21 $711.67 SAVE 7%
In Stock Pre order Out of stock
Add to Wishlist
Details

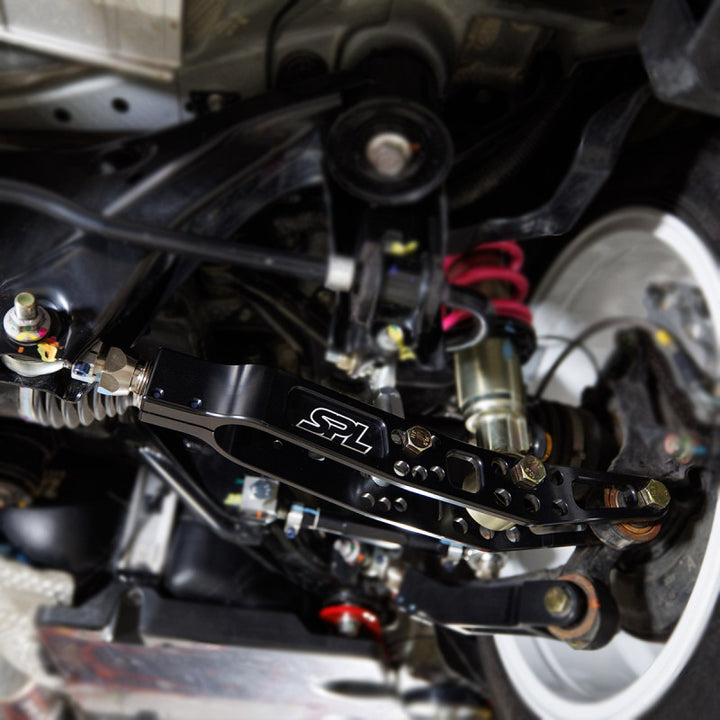

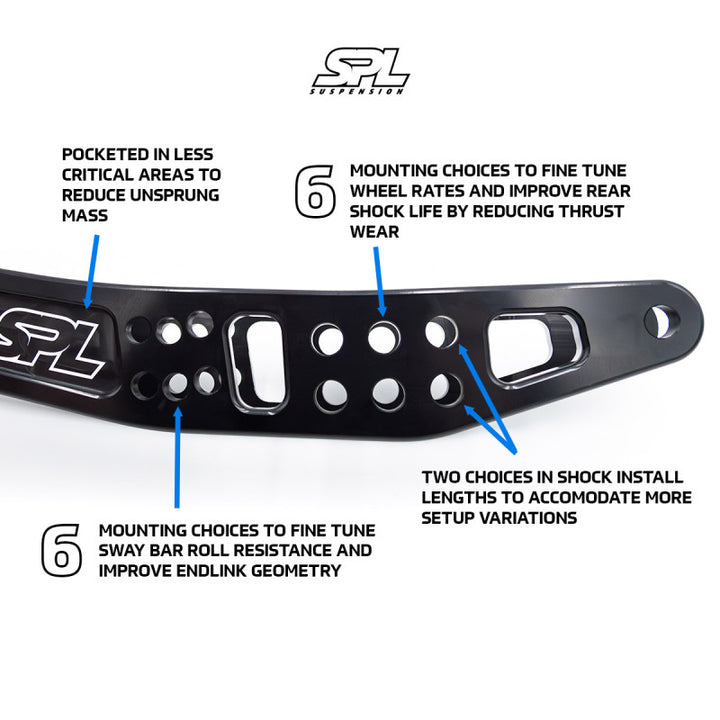

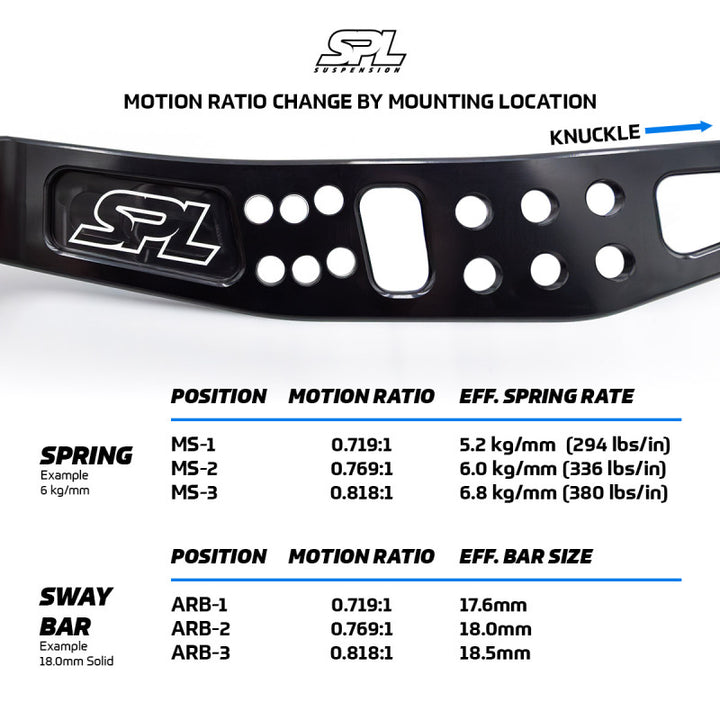

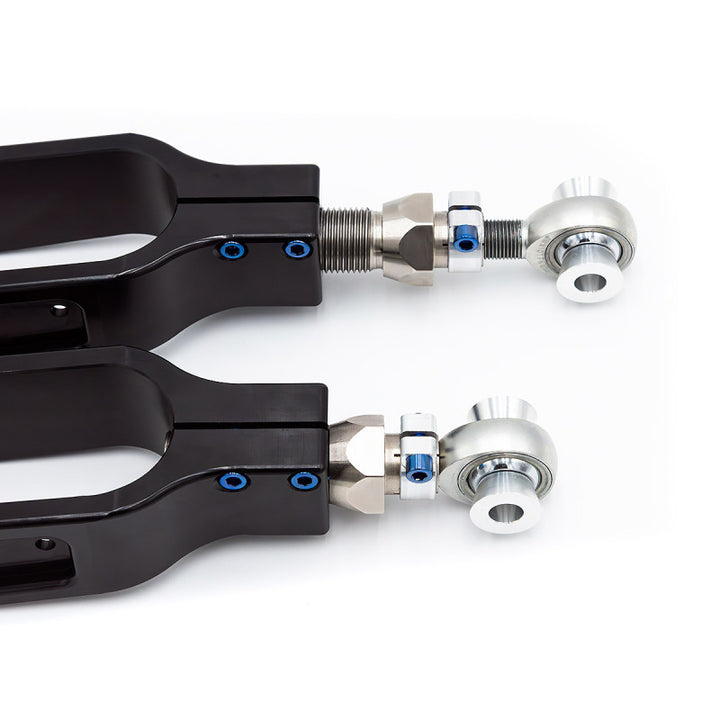

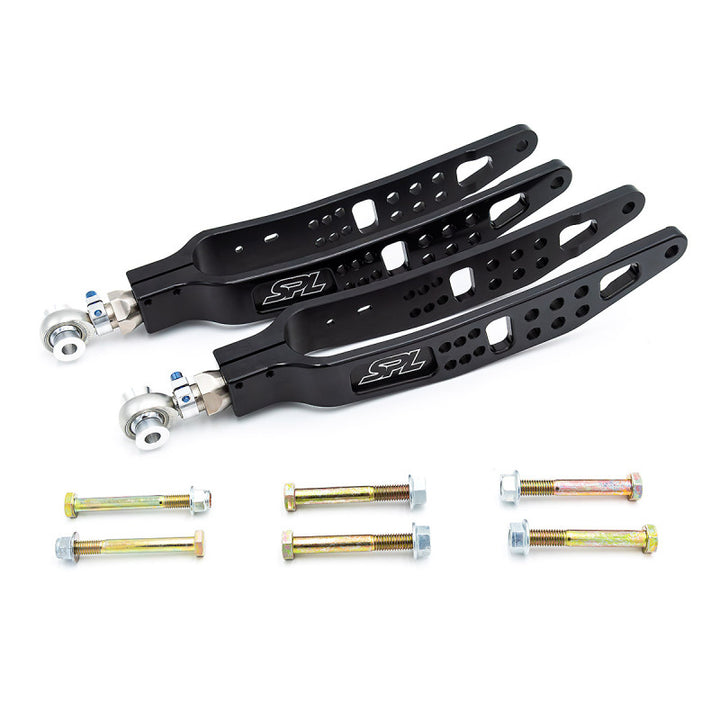

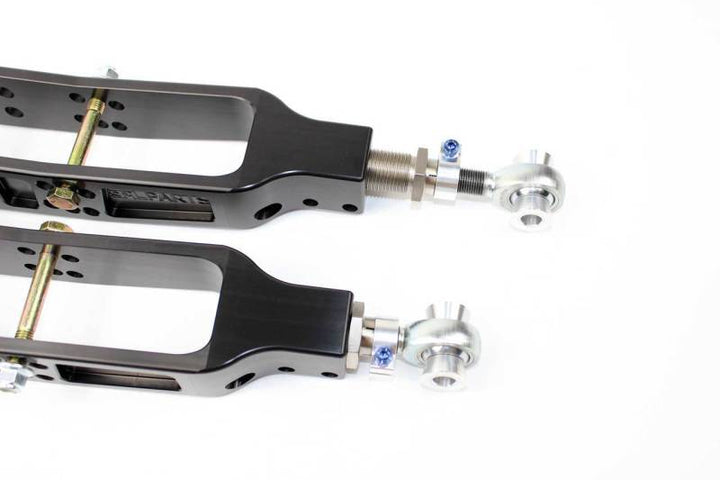

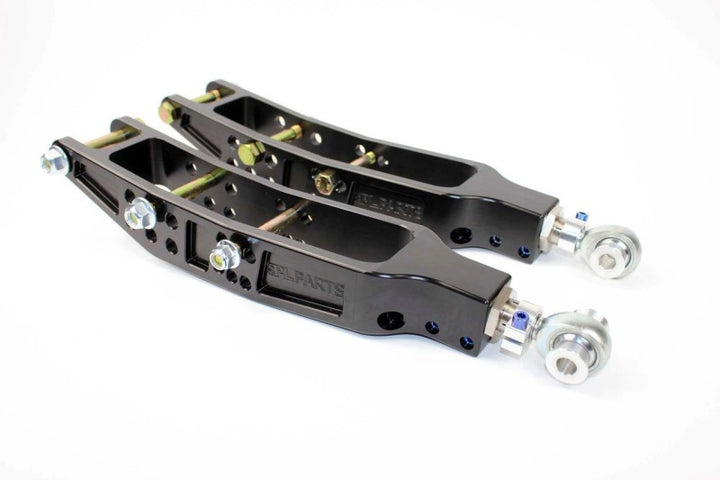

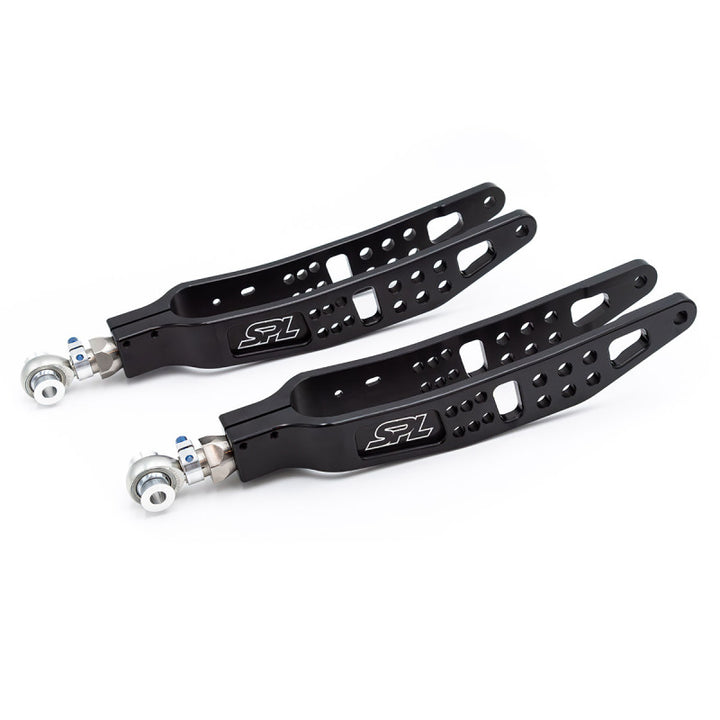

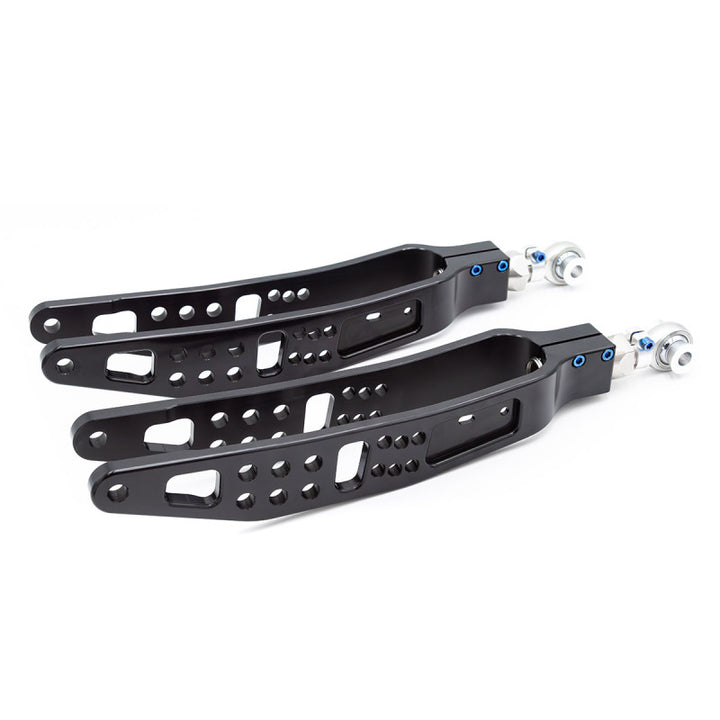

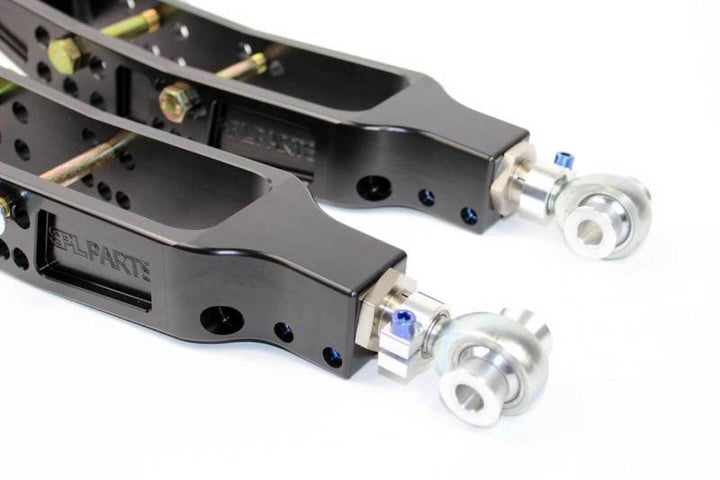

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver.Adjustable Motion RatiosThe three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting).Unrivaled Adjustability RangeThe large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market.BenefitsLarge Range of Camber and Motion Ratio AdjustabilityLightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM)Eliminates Camber Loss to Bushing DeflectionImproves Suspension Response and Driving FeelEasier, On-Car Adjustment + No Jam NutsSelf-Cleaning, US Made, PTFE-Lined FK BearingsMaterials6061-T6 Aluminum Arms (Anodized Black)6061-T6 Aluminum Spacers and 360º Clamps4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)

This Part Fits:

Year Make Model Submodel
2013-2016 Scion FR-S Base
2013-2020,2025 Subaru BRZ Limited
2013-2019,2025 Subaru BRZ Premium
2015 Subaru BRZ Series.Blue
2019 Subaru BRZ Series.Gray
2016 Subaru BRZ Series.HyperBlue
2017 Subaru BRZ Series.Yellow
2018,2020,2025 Subaru BRZ TS
2008-2014 Subaru Impreza WRX
2008-2014 Subaru Impreza WRX STI
2015-2024 Subaru WRX Base
2022-2025 Subaru WRX GT
2015-2025 Subaru WRX Limited
2015-2025 Subaru WRX Premium
2024 Subaru WRX TR
2025 Subaru WRX TS
2015-2021 Subaru WRX STI Base
2015 Subaru WRX STI Launch Edition
2015-2021 Subaru WRX STI Limited
2019 Subaru WRX STI S209
2016 Subaru WRX STI Series.HyperBlue
2018 Subaru WRX STI Type RA
2017-2020 Toyota 86 Base
2018-2020 Toyota 86 GT
2020 Toyota 86 Hakone Edition
2017 Toyota 86 Special Edition
2019 Toyota 86 TRD Special Edition
2023 Toyota GR86 10th Anniversary Special Edition
2022-2025 Toyota GR86 Base
2025 Toyota GR86 Hakone Edition
2022-2025 Toyota GR86 Premium
2024 Toyota GR86 TRUENO Edition
