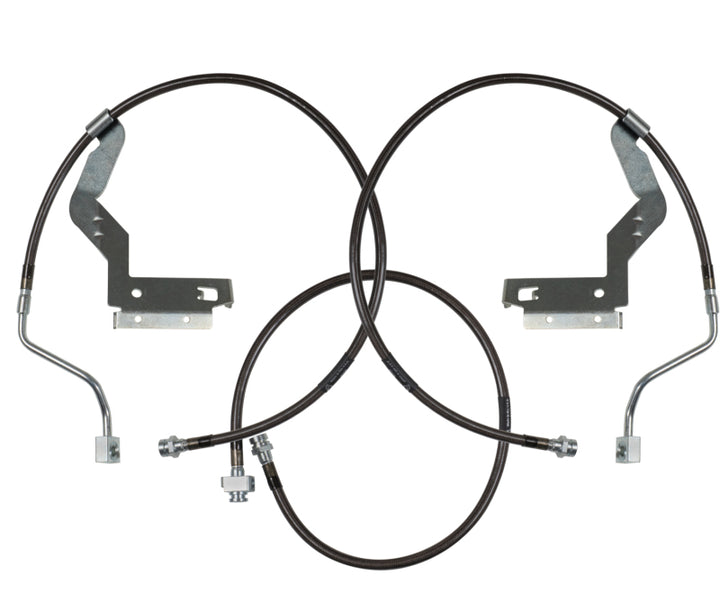

Carli 11-16 Ford F250/350 4x4 SS Extended Brake Lines

Carli 2011–2016 Ford F-250/F-350 4x4 Stainless Steel Extended Brake Lines

The Carli stainless steel extended brake lines for 2011–2016 Ford F-250 and F-350 Super Duty 4x4 allow for the additional wheel travel that Carli's suspension systems provide on this generation of trucks, eliminating the risk of brake line damage and the degraded performance that comes from running stock-length lines with a lifted suspension. On a truck running Carli's lift system with increased front suspension droop, the factory brake lines are geometrically unable to accommodate the full range of suspension travel — they stretch under tension at full droop, and repeated stress at that tension point leads to fatigue failure.

Carli's extended lines for the 2011–2016 fourth-generation Super Duty are sized specifically for the suspension travel geometry of Carli's lift systems on this platform. They are not generic extended lines that happen to be longer — they are application-specific lines routed and sized for the correct clearance and travel accommodation on this specific truck and this specific suspension system.

The 2011–2016 Super Duty Platform

The 2011–2016 Ford F-250 and F-350 represents an updated version of the fourth-generation Super Duty, featuring revised front suspension geometry compared to the 2008–2010 trucks and different front suspension architecture from the 2017-and-newer fifth-generation trucks. Brake line routing, length requirements, and fitting specifications are specific to this generation's suspension geometry. Extended brake lines designed for the 2008–2010 or 2017-plus trucks will not correctly fit the 2011–2016 platform — the routing path and line length must match the specific geometry of this generation's suspension pickup points and routing guides.

Stainless Steel Construction

The stainless steel braided construction provides dimensional stability under hydraulic pressure — preventing the radial expansion that causes rubber hose brake lines to feel spongy — along with abrasion resistance and corrosion resistance for long service life in the conditions Super Duty trucks operate in. Salt, mud, off-road debris, and the abrasive environment under a working truck's chassis are all exposures that degrade rubber lines over time. Stainless construction maintains integrity and appearance through these exposures without the maintenance or replacement schedule that rubber lines require.

Fitment

The Carli stainless extended brake lines fit 2011–2016 Ford F-250 Super Duty (4x4, all trims, all engines) and 2011–2016 Ford F-350 Super Duty (4x4, all trims, SRW, all engines). These are designed for use with Carli's suspension systems on this platform — confirm your specific lift height is compatible with this brake line length. For trucks running very large lift heights at the extreme of Carli's range for this platform, additional length may be required; confirm with Carli technical support.

Installation

Brake line installation requires complete bleeding of the brake system after the new lines are installed. Air in the brake system will cause soft or unresponsive pedal feel and must be fully purged before the truck is driven. Estimated installation time at a shop with bleeding equipment is one to two hours for the front lines. If the rear lines are being replaced at the same time, allow additional time. The brake system must be inspected for correct line routing, correct fitting engagement, and clearance from any moving components before the truck returns to service — have this inspection performed before driving, not during the test drive after installation.

When to Install

Extended brake lines should be installed at the same time as the suspension lift components — not after the truck has been driven on the lift with factory lines in place. Driving the truck at full droop with factory lines introduces cumulative stress into the lines that is not immediately visible but degrades the line material over time. Install the extended lines as part of the initial suspension installation, and the brake system will function correctly from the first drive with the new suspension configuration.

How to Know When Your Shocks or Suspension Components Need Replacement

Suspension components do not fail suddenly in most cases — they degrade gradually, and the degradation can be subtle enough that owners adapt to it without realizing how far the truck's behavior has drifted from what it should be. The most reliable way to detect shock wear is to drive the truck over a familiar road after installation and note how it behaves, then revisit that same road once a year. Meaningful changes in highway stability, stopping distance feel, body movement over bumps, or tire wear patterns are all indicators worth investigating. A truck that needed constant steering correction on a familiar route last year but now requires even more is telling you something about the front suspension that is worth addressing before it becomes a safety issue under hard braking or in an emergency maneuver.

Specific signs that front shocks on a lifted Ram HD or Super Duty have reached the end of their useful life include: excessive nose dive under moderate braking that was not present when the shocks were new; the front end bouncing more than once or twice after a significant road input rather than recovering cleanly; steering that feels vague or requires continuous small corrections to maintain a straight line on a flat road; and visible oil residue streaming down the shock body from the shaft seal rather than the small amount of seepage that is normal on used shocks. Any of these symptoms indicates a shock that is no longer providing meaningful damping and should be replaced before the degraded damping accelerates wear on ball joints, tie rod ends, and other steering and suspension components that are compensating for the shock's reduced function.

Suspension Maintenance as Part of High-Mileage Ownership

Ram 2500, Ram 3500, F-250, and F-350 trucks are built to be driven for high mileage — 200,000, 300,000, or more miles on a well-maintained powertrain is not unusual, particularly with the Cummins diesel and Power Stroke diesel engines that these platforms share. The suspension system, by contrast, has wear items that require attention at much shorter intervals than the engine. Ball joints, tie rod ends, steering stabilizers, and shock absorbers are all consumables on a hard-working truck, and treating them as set-and-forget components leads to the accelerated wear pattern that turns a 150,000-mile truck into one that needs suspension rebuilding before it reaches 200,000.

A practical maintenance schedule for a lifted Ram HD or Super Duty that sees regular towing, off-road use, or heavy payload: inspect shock bodies and hose fittings visually every oil change, noting any new oil residue; check front suspension components for looseness at every tire rotation by grabbing the tire at 12 and 6 o'clock and checking for play, then at 9 and 3 o'clock; confirm alignment specs are maintained annually or any time new tires are installed. Suspension components on these trucks are not cheap to replace, but they are far less expensive to maintain than the drivetrain damage that results from running suspension that is no longer controlling the truck correctly. The Carli components installed on your truck are built to last — give them the inspection attention that allows you to catch wear early rather than discovering component failure in the field.

When to Contact Carli Technical Support

Carli Suspension's technical support is available for questions about component selection, installation procedures, torque specifications, and compatibility with your specific truck and lift configuration. If you are unsure whether a component in this listing is the correct specification for your truck's year, engine, lift height, or existing suspension configuration, contact Carli before ordering rather than after. Returning a mis-specified suspension component is a more expensive and time-consuming process than confirming the correct specification upfront. Carli's technical team can verify the complete parts list for your application, confirm compatibility with existing components if you are building in stages, and answer specific questions about installation procedures for your truck. The investment in a Carli suspension system is significant enough that getting the specification right from the beginning is worth the time of a pre-purchase conversation.

Ordering and Fitment Confirmation

Before placing your order, confirm your truck's specific year, engine, cab configuration, and current or intended lift height against the fitment information above. Carli makes application-specific components — the same product name at different lift heights or for different engine variants uses different specifications, and ordering the wrong variant requires a return and reorder that adds time and cost to your build. If you have any doubt about which specific part number is correct for your truck and your intended application, contact Carli's technical support before ordering. Their team can confirm the correct specification based on your truck's VIN or the specific year, make, model, engine, and lift height you provide.

All Carli components ship from their Southern California facility. Shipping times vary by destination and carrier. For time-sensitive builds where a shop appointment is already scheduled, order with enough lead time to confirm receipt and inspect the components before the install date. Inspect all components upon receipt — verify the part numbers match your order, check for any shipping damage, and confirm all included hardware is present before the truck goes on the lift. A missing hardware piece discovered at install time delays the job unnecessarily. Carli's customer support is available to address any shipping damage or discrepancy claims promptly when contacted immediately upon receipt.

Bull Strap carries Carli Suspension components as part of a broader suspension and off-road catalog serving Ford Super Duty and Ram HD owners. Every component listed in this store is intended for installation on trucks that will be driven — not trailer queens, not show trucks, but working vehicles used by owners who take their trucks seriously and expect their suspension components to perform reliably through years of hard use. That is the standard Carli builds to, and it is the standard we stock to. Questions about any component in this listing or about building a complete Carli system for your specific truck are welcome — reach out before you order if you have any uncertainty about fitment or specification.
