Lift Kits for Trucks, Jeeps, and Off-Road Rigs

A lift kit is the starting point for serious off-road capability. More ground clearance, more tire clearance, better approach and departure angles — lift unlocks what your rig can do on trail. But lift done right is a system, not just a single purchase. Every inch of lift affects multiple other components.

What Lift Actually Does

Lift raises your body relative to your axles, which increases ground clearance and allows larger tires. But it also changes your suspension geometry, increases suspension droop travel, moves your driveline angles, and — critically — changes the maximum safe travel of every component in your drivetrain.

This is where builders get into trouble. They install a 4-inch lift, run the new coilovers without droop limits, and on the first real trail run an axle drops into full droop and snaps a CV at 40 degrees of angle. The coilovers weren't the problem — the missing limit straps were.

Lift Kits and Limit Straps: Non-Negotiable

Bull Strap limit straps are the single most important supporting component for any lift over 1.5 inches. They mechanically limit how far your suspension can droop, protecting your CV axles, brake lines, and lower control arms from reaching failure angles. Mil-spec webbing, heat-treated 4130 Chromoly Clevis ends, adjustable to your exact droop requirements.

The rule: before your first trail run on any new lift kit, measure your CV angles at full droop and set limit straps to keep them safe. This is a 15-minute job that prevents CV failures that cost 10x more to fix. Professional builders do this automatically. It's not optional on a serious build.

Supporting Components

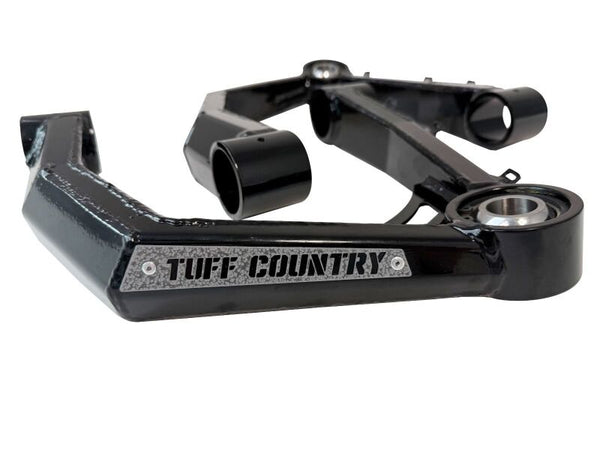

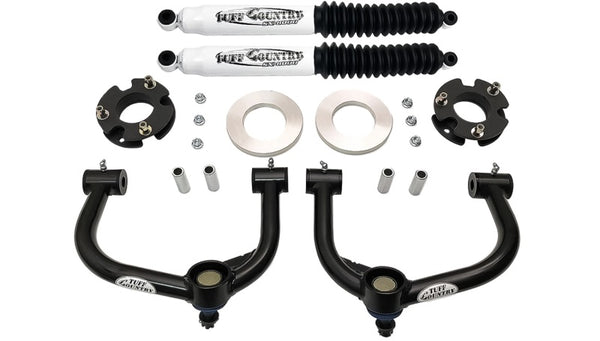

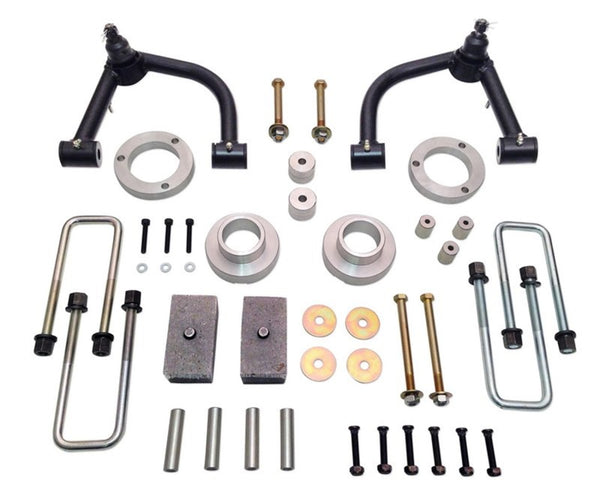

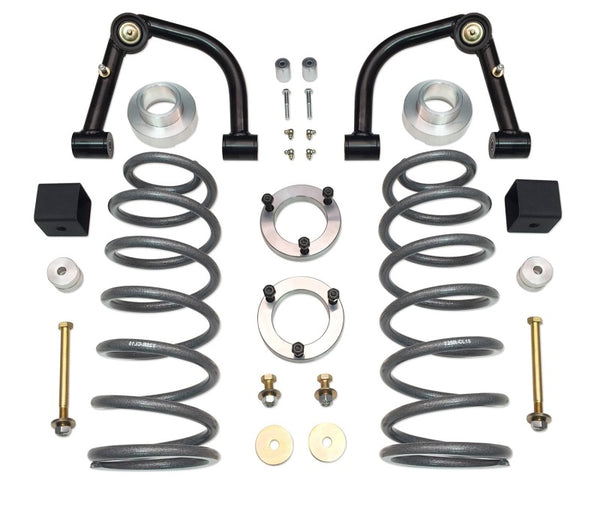

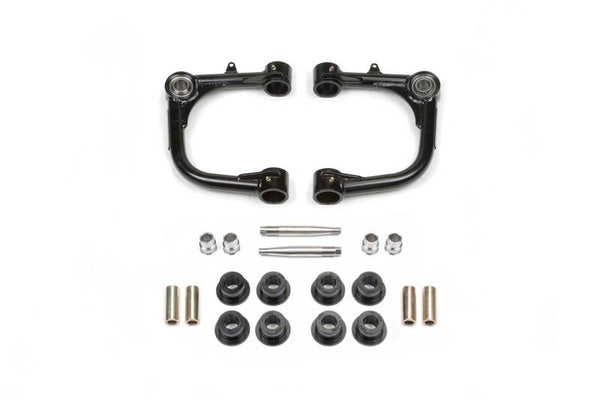

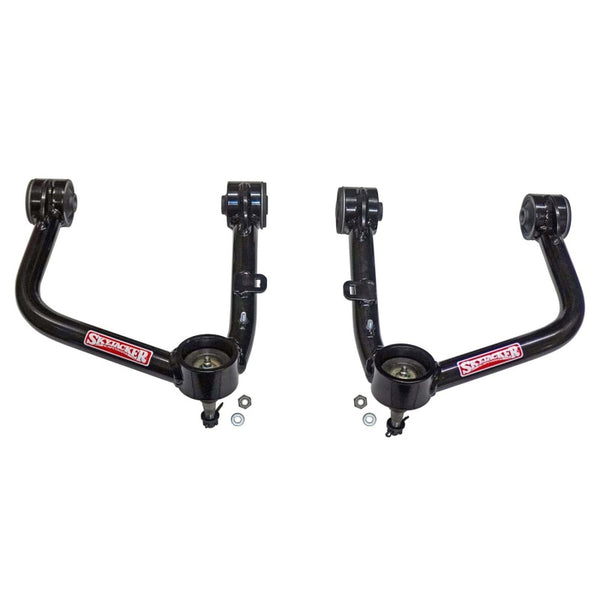

Lift changes your geometry, so multiple components need to be addressed: upper control arms (IFS trucks over 2 inches), extended brake lines (any lift that increases droop), caster correction, and a full 4-wheel alignment. The sequence matters: install the lift, set limit straps to define droop limits, spec brake lines to those limits, then align. Get the sequence wrong and you'll be reinstalling things you already installed.

How Much Lift

Match lift height to your use case. 1-2 inches: leveling lift for aesthetics and minor clearance gain, no supporting modifications typically required. 2-4 inches: mid-range lift for serious trail use, requires UCAs, extended brake lines, alignment, and limit straps. 4+ inches: serious off-road territory requiring full supporting modifications including limit straps, extended lines, UCAs, and potentially driveline work.
