Coilovers replace the separate shock absorber and spring on each corner of your suspension with a single integrated unit that lets you independently adjust ride height, spring preload, and damping. For trucks and Jeeps that split time between the highway and the trail, coilovers are the most capable suspension upgrade available — better tuning flexibility than a standard lift, more travel than a leveling kit, and the ability to change the setup without pulling the whole suspension apart.

How Coilovers Work

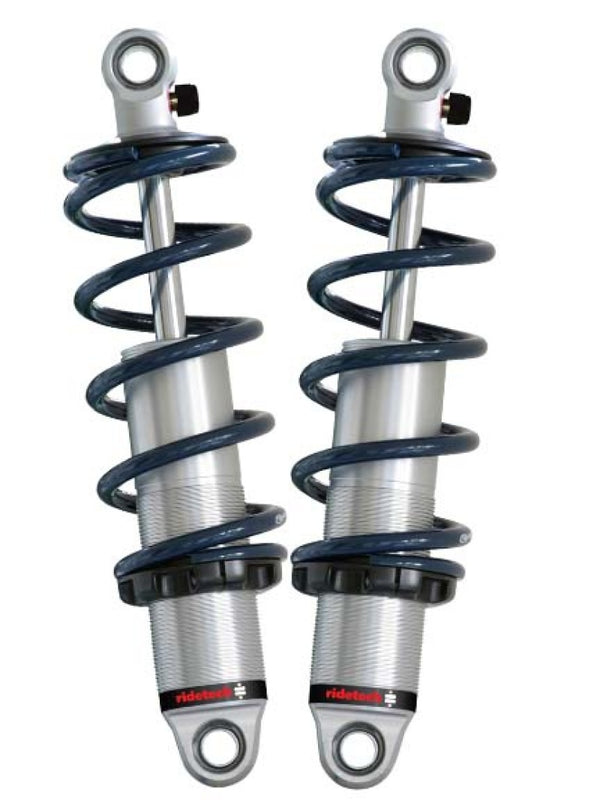

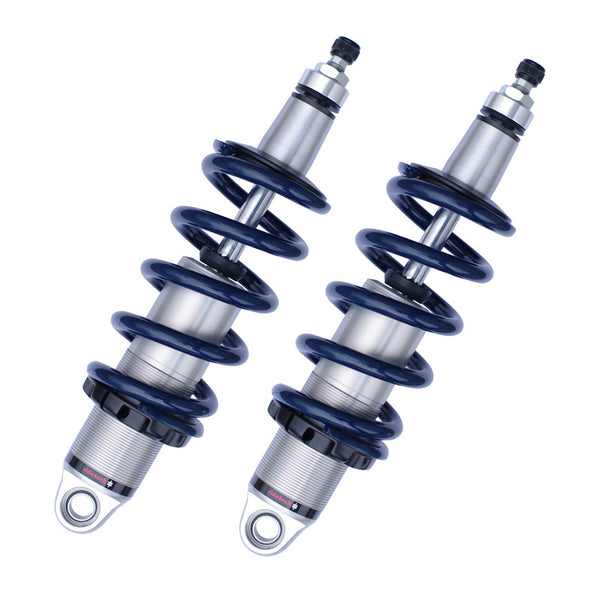

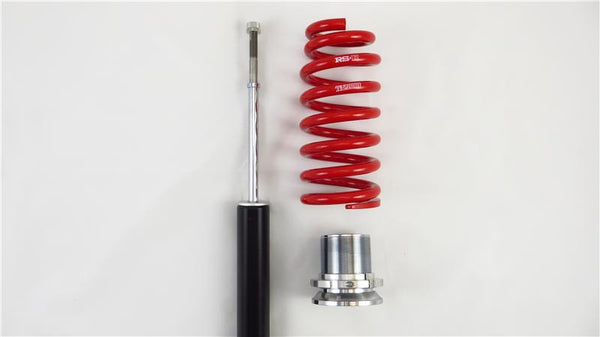

A standard suspension system uses a separate shock absorber and coil spring. The spring rate is fixed at manufacturing. The shock has a single damping curve. To change ride height, you swap springs. To change damping, you swap shocks. A coilover integrates the spring onto the shock body with an adjustable lower spring perch. Turning the perch raises or lowers the vehicle in increments. Adjustable-damping coilovers add a damping adjustment dial, typically at the top of the shock, so you can tune from firm (trail, high-speed) to soft (daily highway) without any tools.

Coilovers vs a Standard Lift Kit

A standard lift kit with separate springs and shocks gives you a fixed tune. If you want a different ride height, you replace the springs. If the damping feels wrong for trail use, you swap shocks. Coilovers eliminate both of those limitations. Ride height adjusts via the threaded perch — no parts swapped, no alignment required for small changes. Damping (on adjustable models) sets via a dial. This is why serious off-road builds choose coilovers: maximum adjustability for the full range of conditions the vehicle sees.

Brands in This Category

ICON Vehicle Dynamics

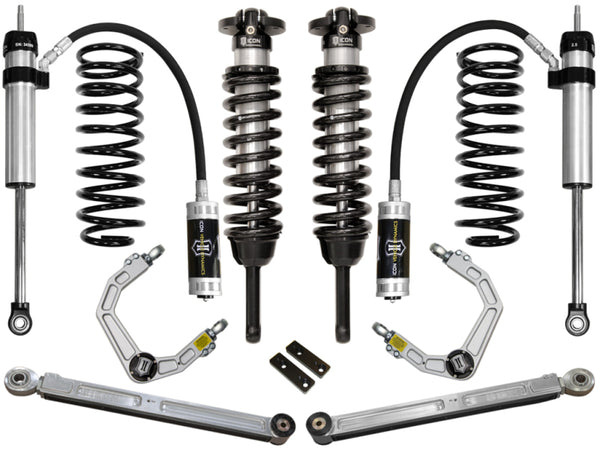

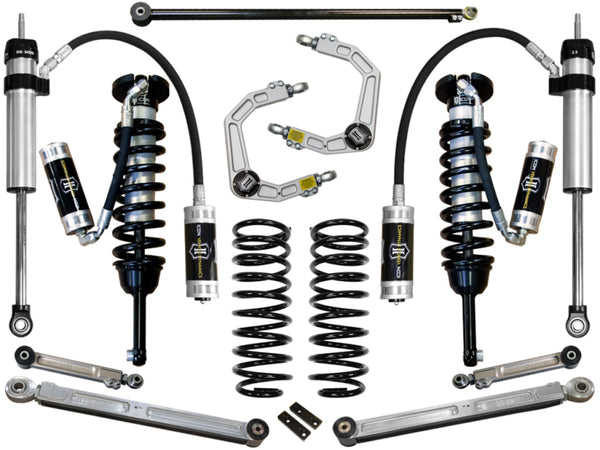

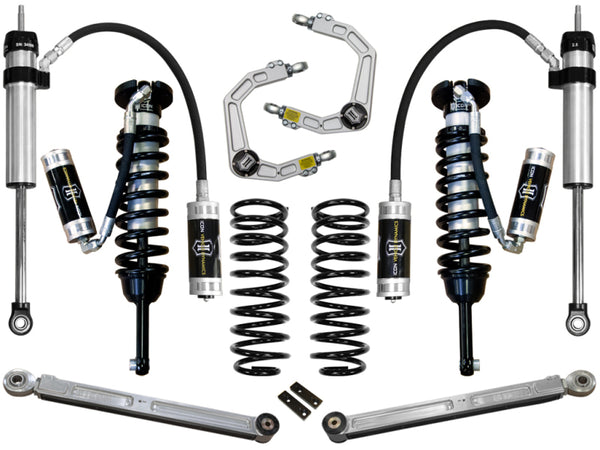

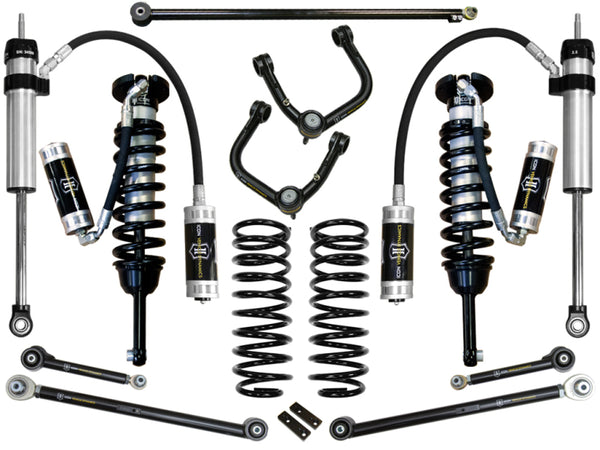

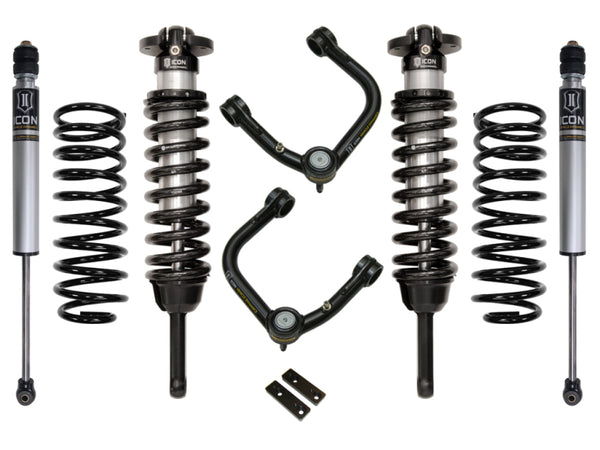

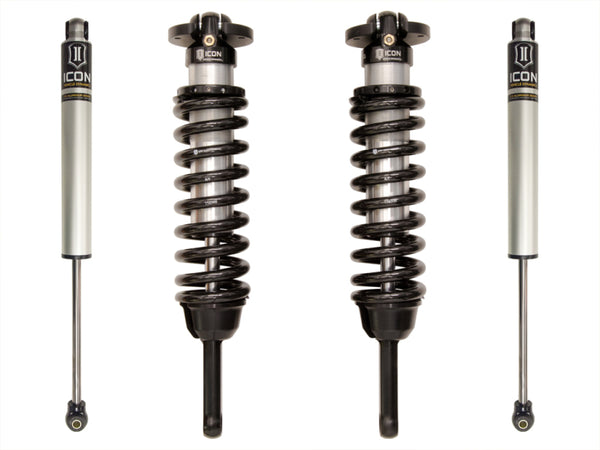

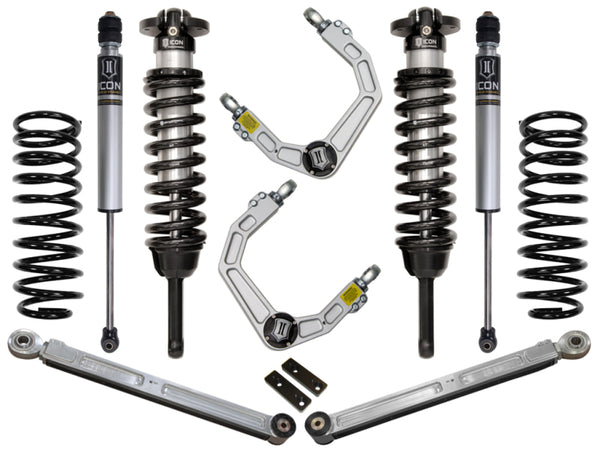

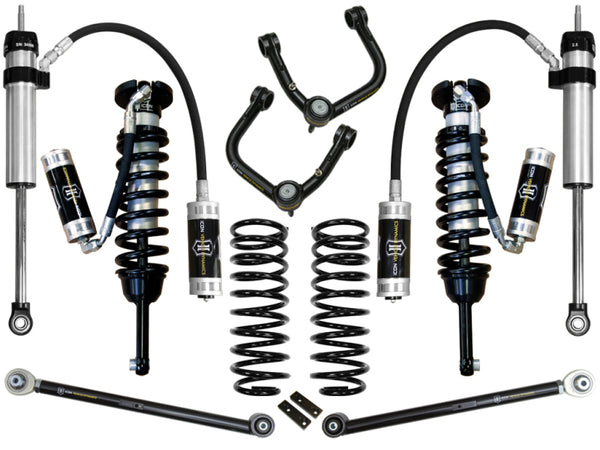

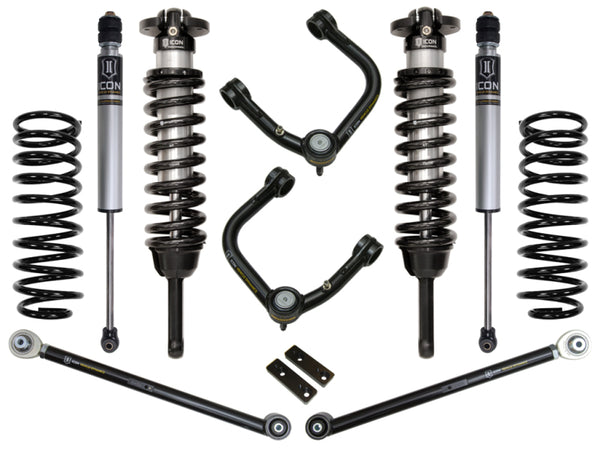

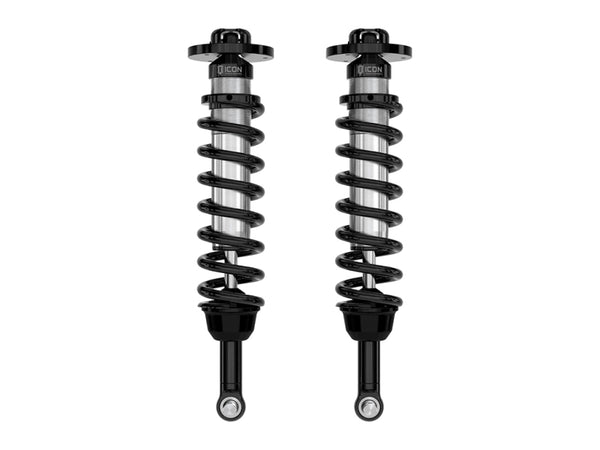

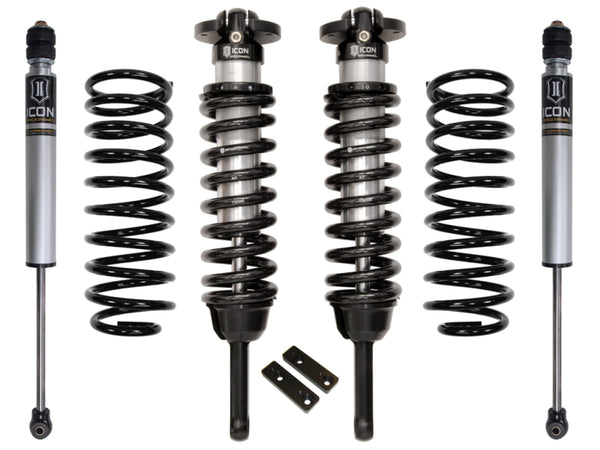

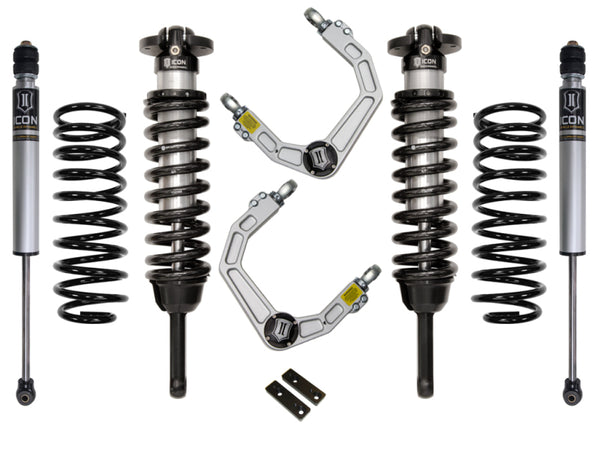

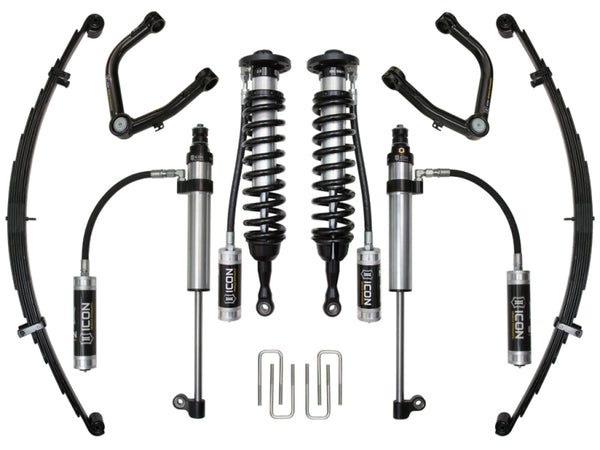

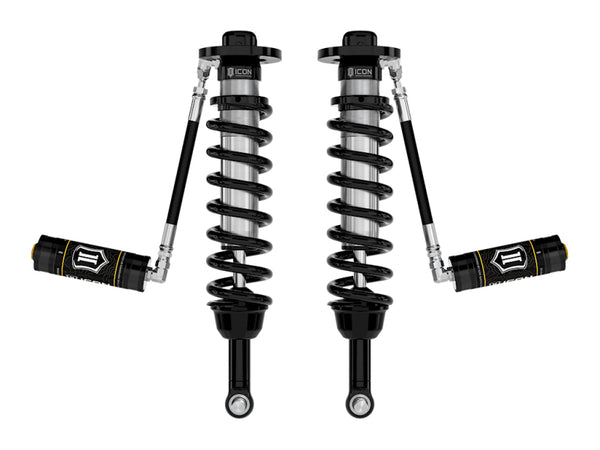

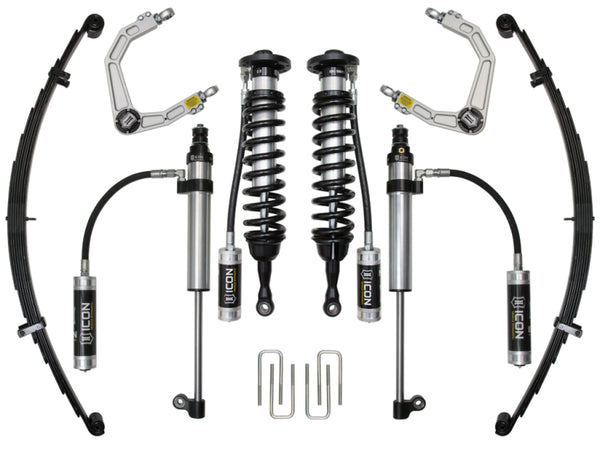

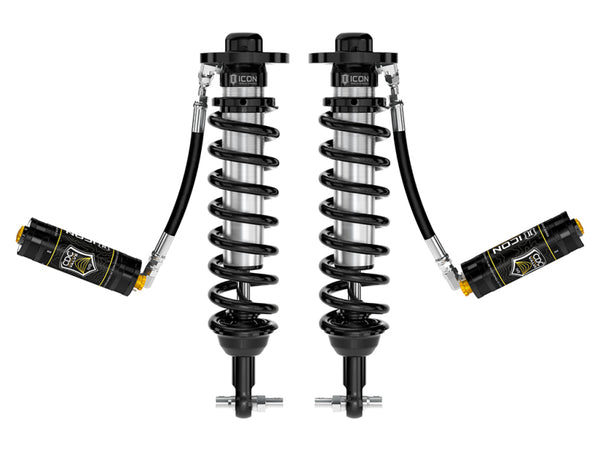

ICON coilovers are engineered and made in the USA. Their 2.5-inch diameter shock bodies with remote reservoirs represent the top tier of the lineup — the reservoir keeps the shock fluid cooler during sustained off-road use, which prevents fade. Stage 3 and above kits include compression damping adjustment. Vehicle coverage includes Jeep Wrangler JL, Ford Bronco, Ford F-150, Toyota Tacoma, and Toyota Tundra. ICON is the go-to recommendation for builds that will see genuine high-speed desert running or repeated rocky trail use.

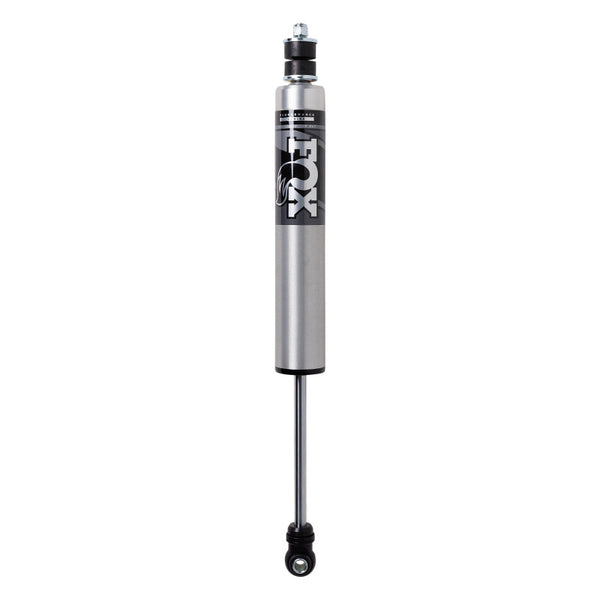

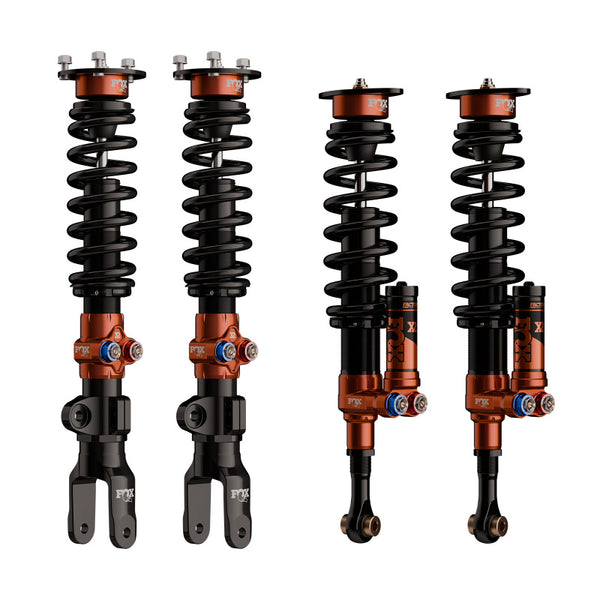

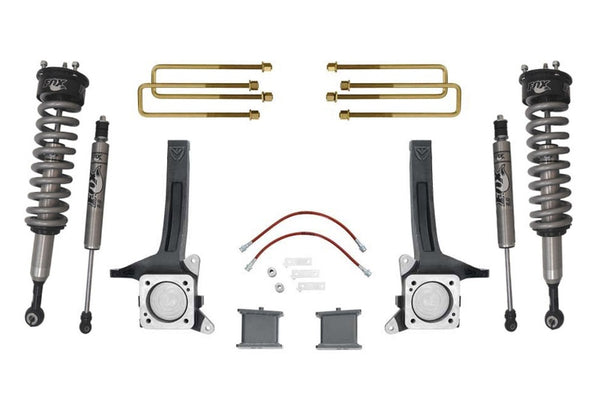

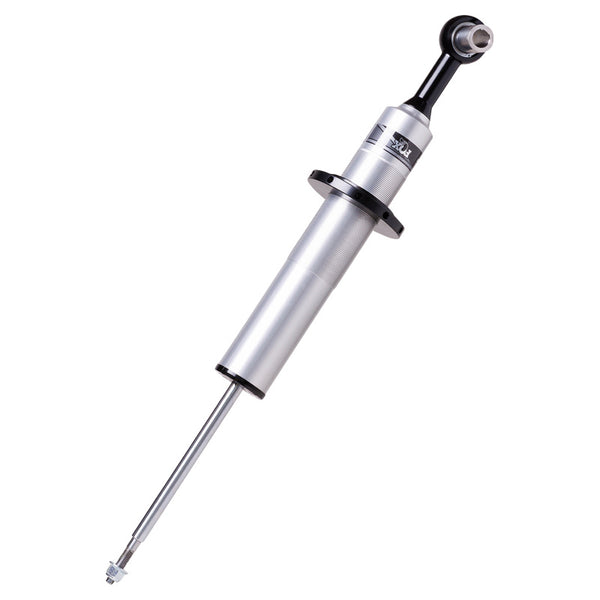

Fox Performance Series

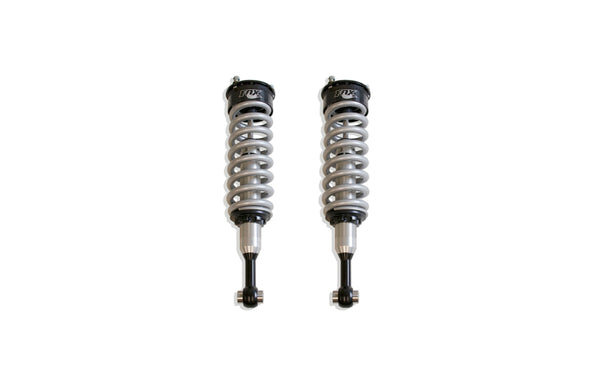

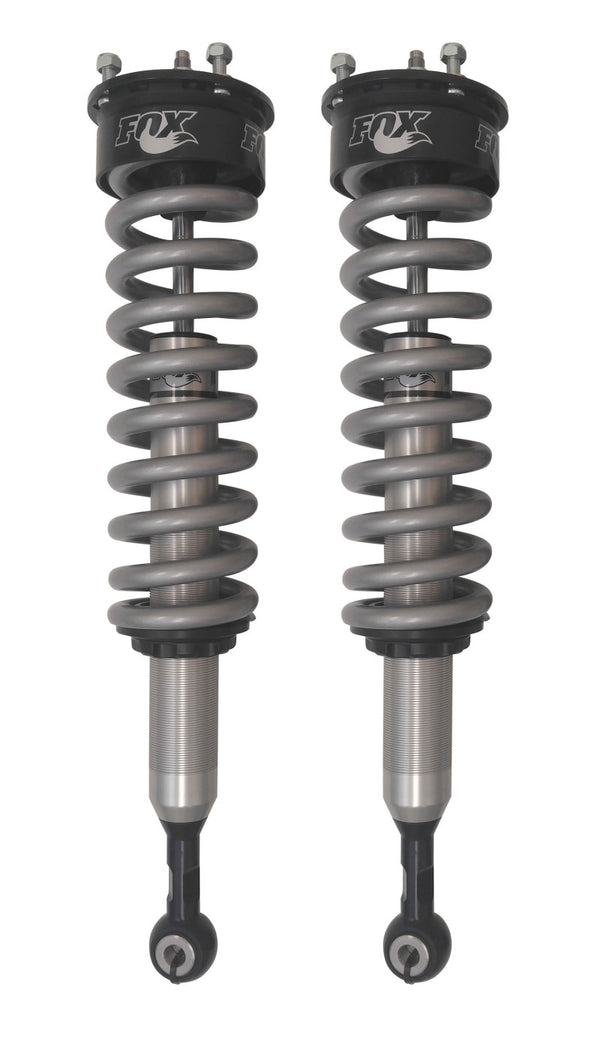

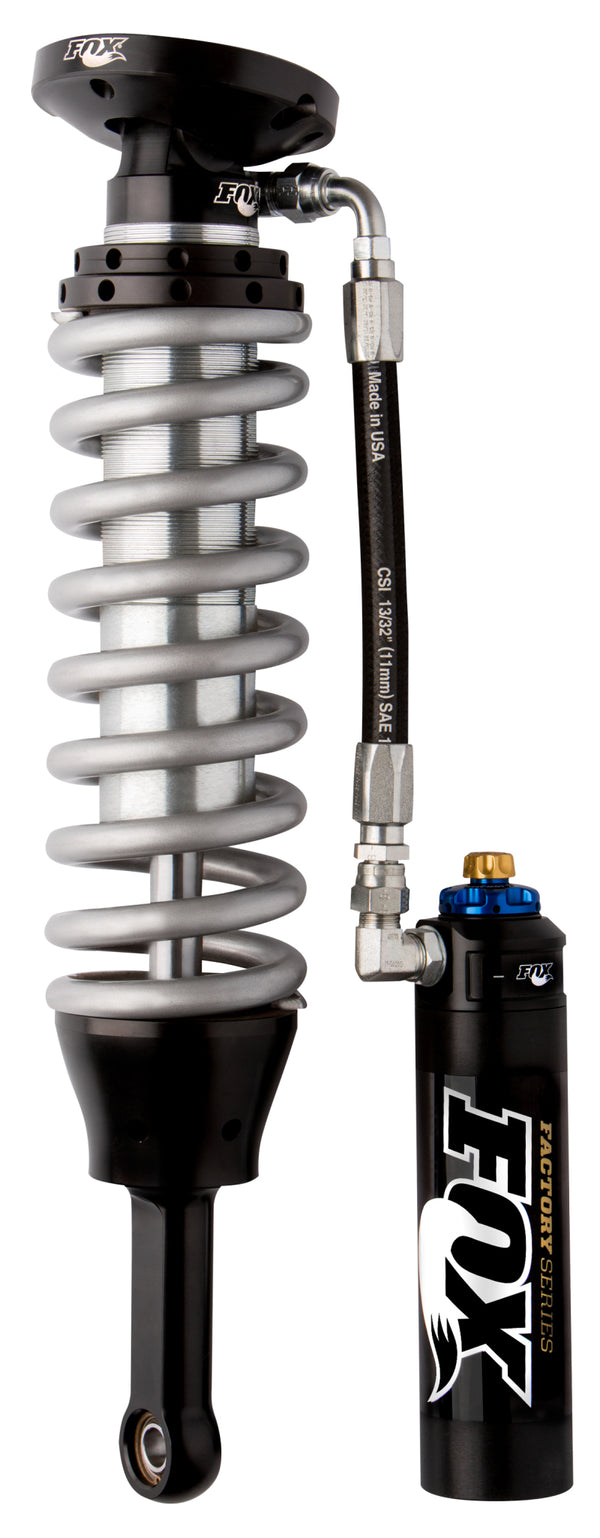

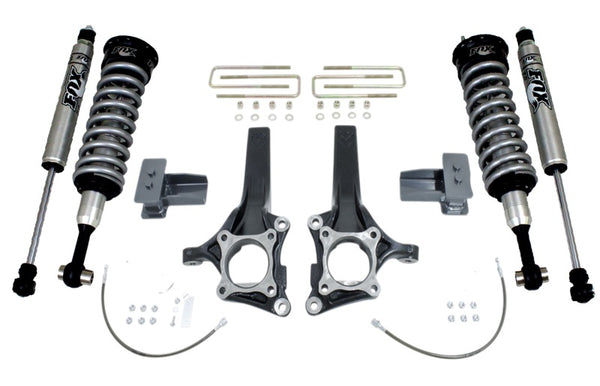

Fox 2.0 and 2.5 Performance Series coilovers are the most widely-run coilover in the off-road market. Fox uses internal bypass technology in their higher-end units — position-sensitive damping that behaves differently in the first third of travel than in the last third. The result is a plush, compliant feel in normal driving and firm, controlled damping at the limits of travel. Available for F-150, Raptor, Ram 1500, Tacoma, Tundra, Wrangler, and Bronco. Fox is the default choice for Ford F-150 and Raptor owners specifically.

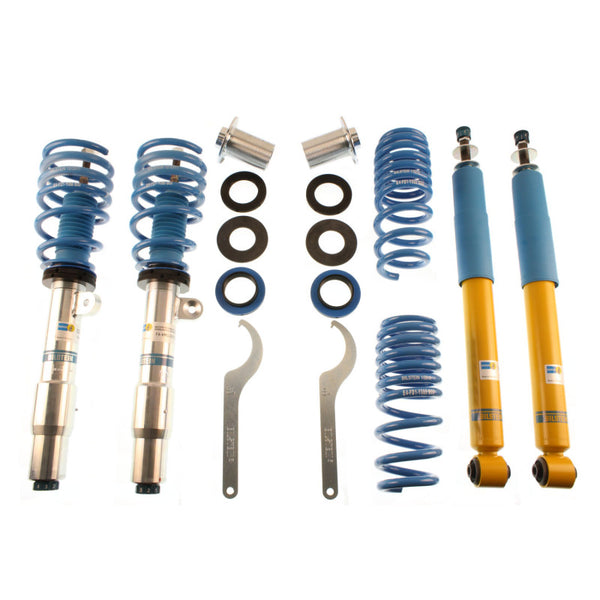

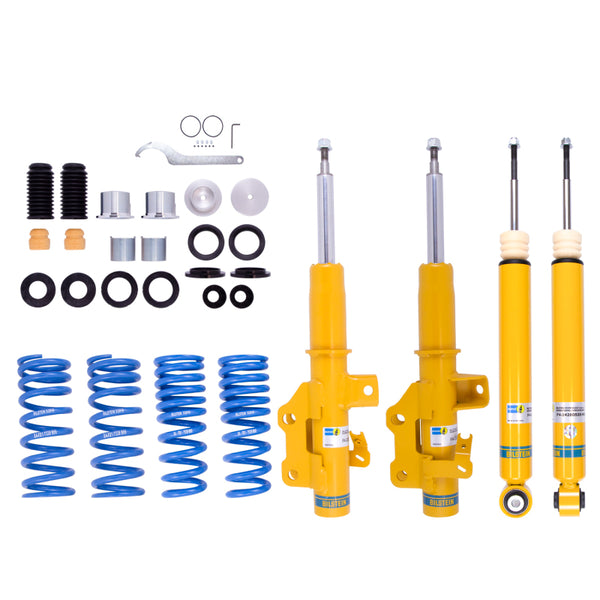

Bilstein

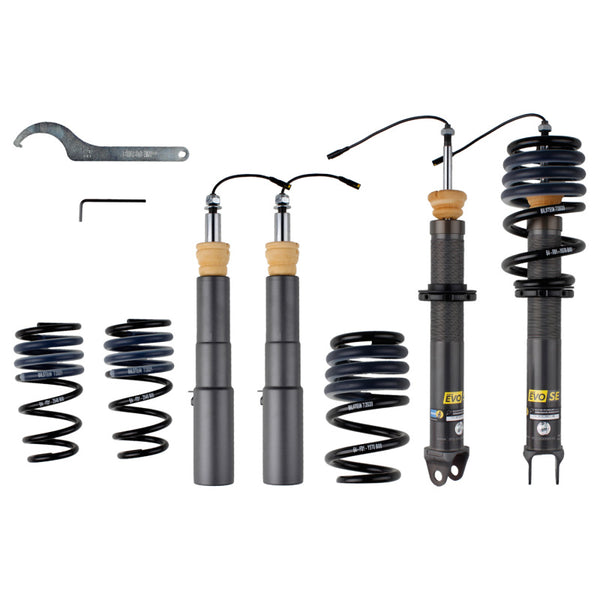

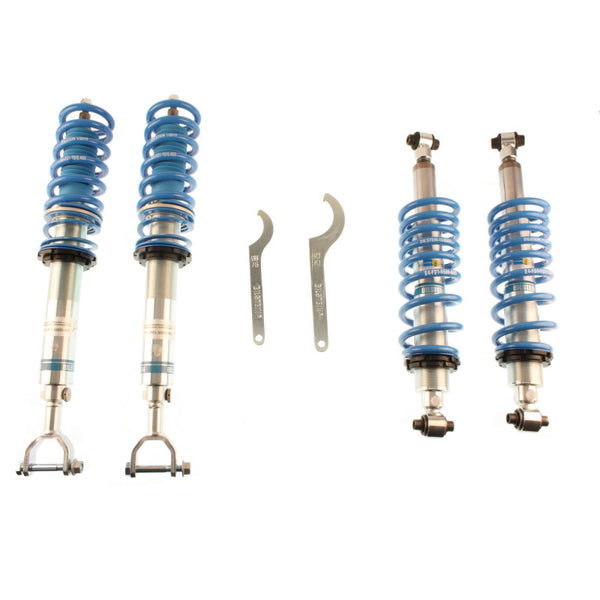

Bilstein 5160 and 8112 coilover systems are designed for heavy-duty truck applications — Ram 2500, Ram 3500, Ford F-250, and Ford F-350. Bilstein uses monotube gas pressure construction, which provides consistent damping regardless of fluid temperature. A monotube shock runs cooler than a twin-tube under sustained heavy use, which matters on a tow-capable truck doing rough road miles in addition to trail work. Bilstein is the most frequently specified coilover for Carli Suspension HD truck builds on Ram 2500 and 3500.

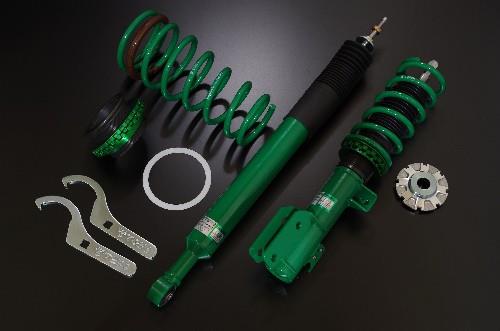

Tein

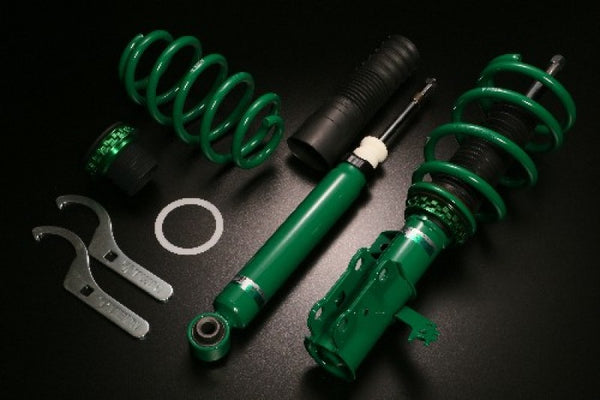

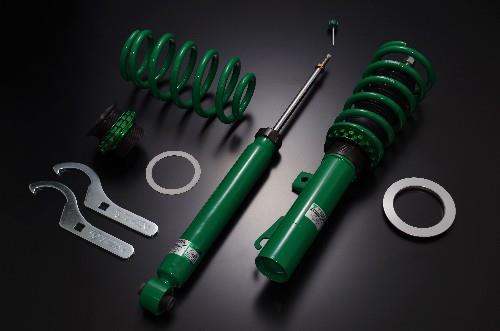

Tein coilovers target performance street applications on front-wheel-drive and all-wheel-drive platforms. Available for Subaru WRX, Toyota GR86, Honda Civic Type R, Mazda MX-5, and similar platforms. Tein's FLEX Z and FLEX A kits offer 16-level damping adjustment and height adjustment independent of spring preload. Their EDFC Active system adds electronic remote adjustment from inside the vehicle. Tein is not designed for off-road lifting — they are a street performance brand for lowering and handling improvement.

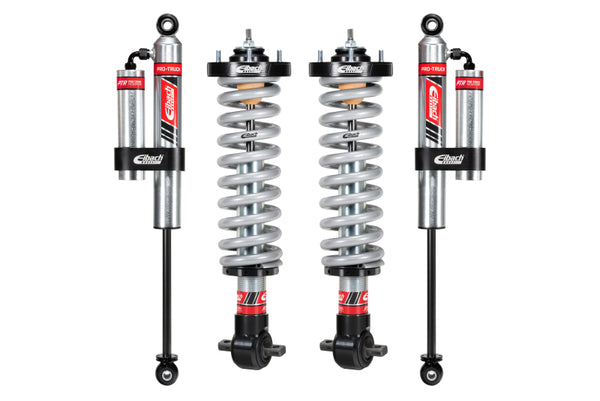

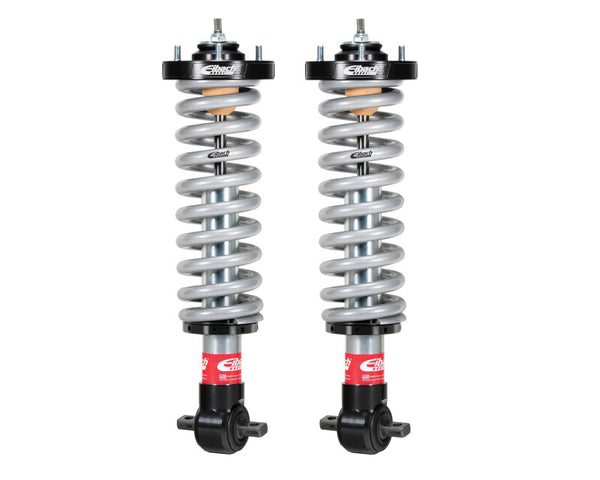

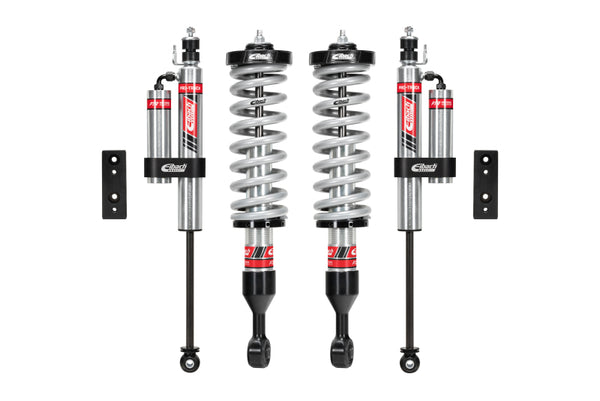

Eibach

Eibach Multi-Pro-R2 coilovers are a dual-adjustable street and light track system. Available for Ford Mustang, Chevrolet Camaro, Subaru WRX/STI, Volkswagen Golf R, and similar performance platforms. Eibach engineers spring rates to lower the vehicle 1–2 inches while maintaining factory-level or better handling compliance. Not designed for off-road use — the correct application is sport compact and muscle cars where lower stance and improved cornering response are the goal.

How to Choose

Fitment and Installation

Coilovers are vehicle-specific — check year, make, model, and trim on every product page before ordering. Installation requires a spring compressor for units with separate springs, basic hand tools, and a torque wrench. Most installations take 3–5 hours for a full set. An alignment is required after coilover installation on any vehicle where the ride height changes significantly from stock.

See also: Carli Suspension — coil springs, track bars, and radius arms for Ram 2500 and Ford F-250 HD builds.

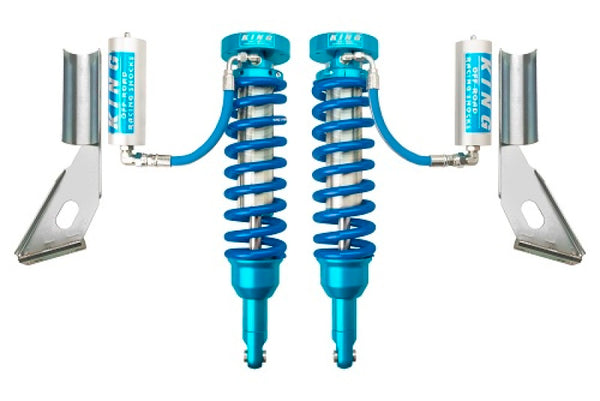

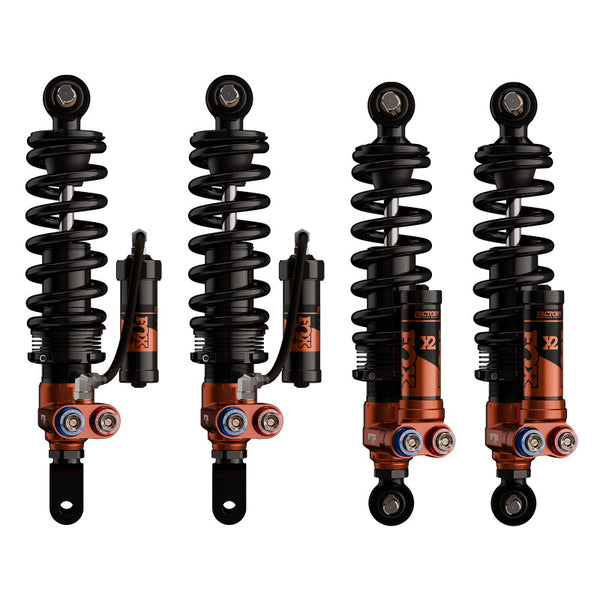

Remote Reservoir vs Non-Reservoir Coilovers

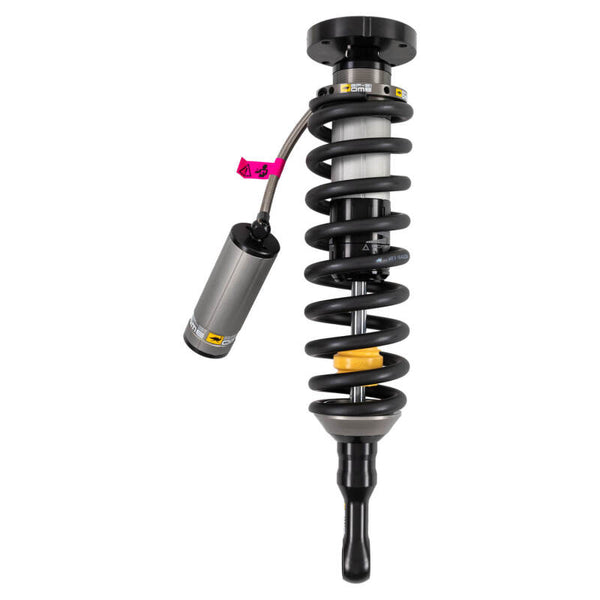

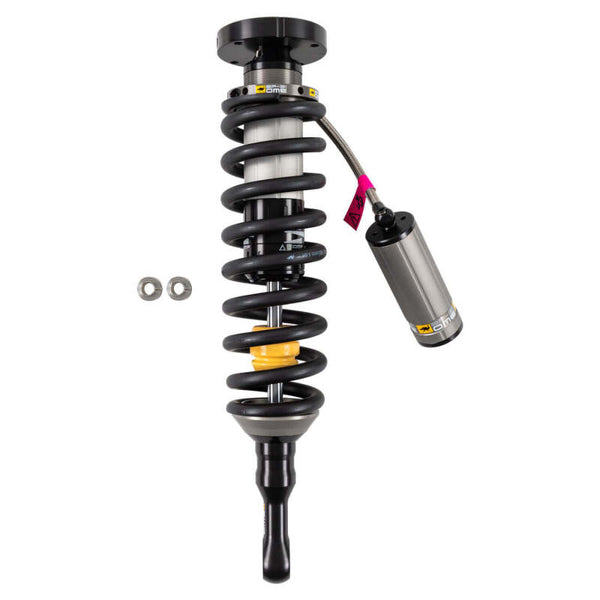

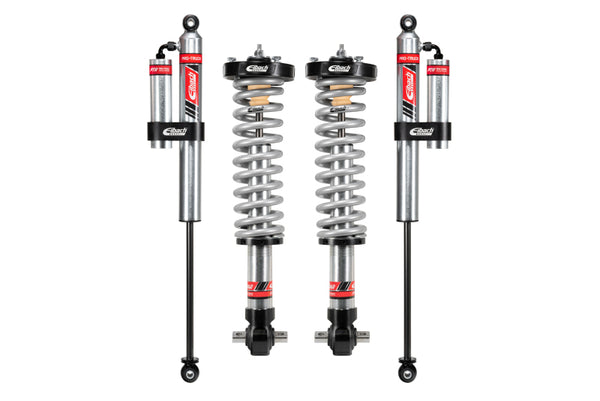

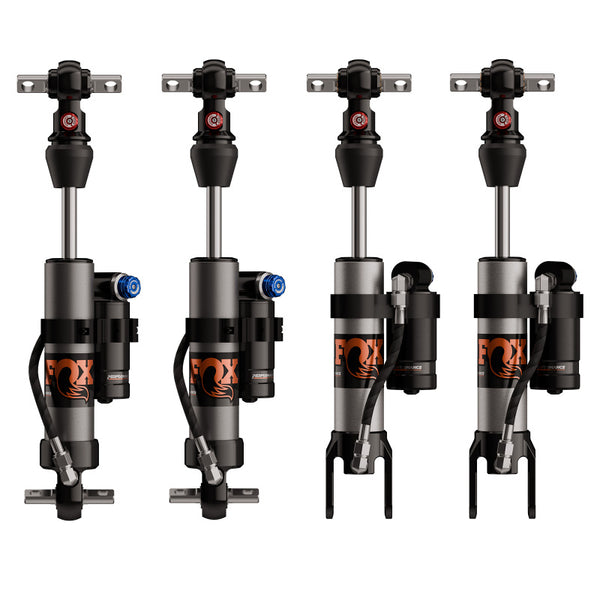

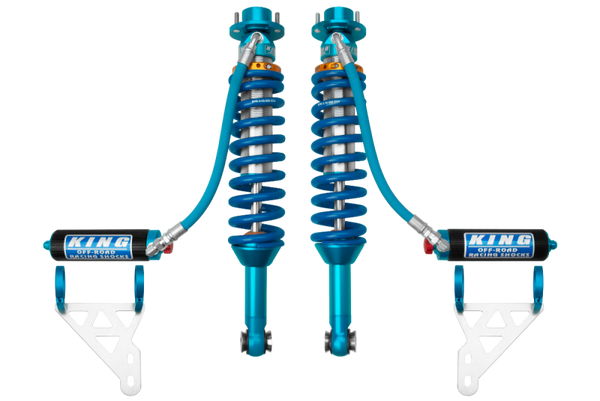

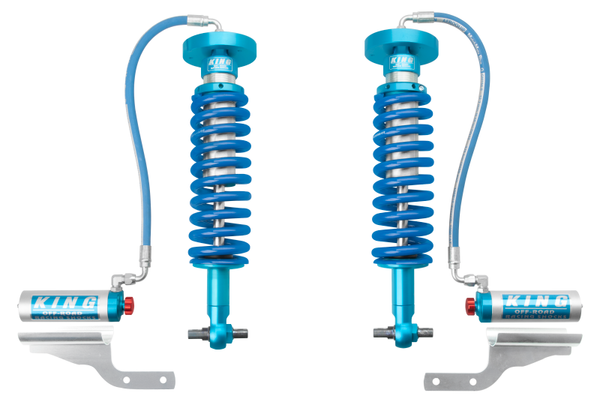

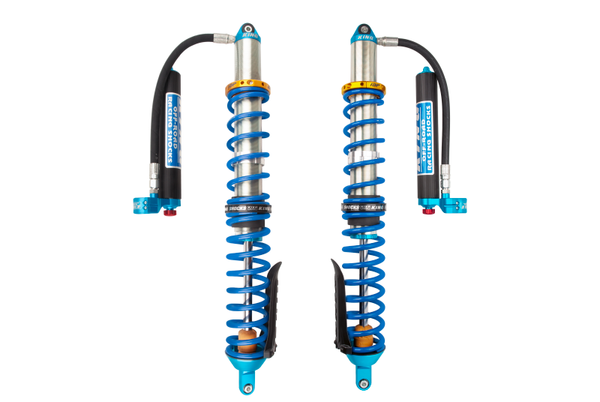

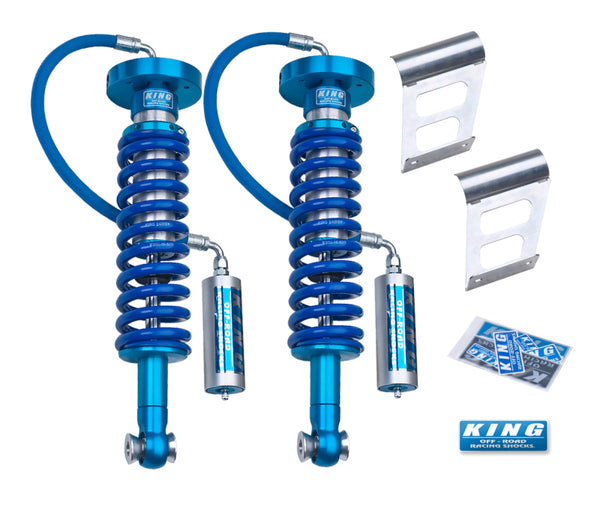

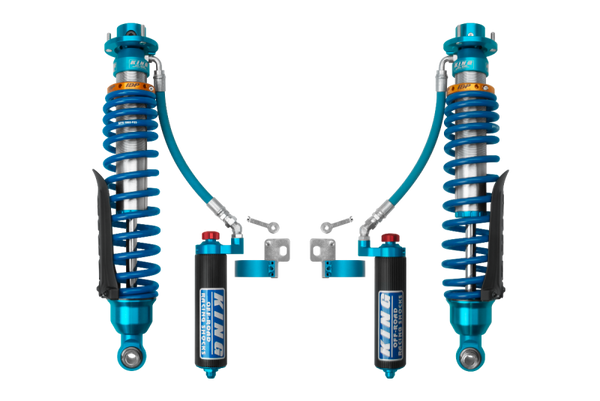

A remote reservoir coilover has an external fluid reservoir connected to the shock body by a hose. The reservoir adds fluid volume, which gives the shock more thermal mass — more fluid to absorb and dissipate heat during sustained off-road use. Without a reservoir, repeated shock cycling (washboard roads, rock crawling, high-speed desert) heats the fluid until it aerates (foams), which causes a sudden, temporary loss of damping — called fade. Remote reservoir units eliminate this failure mode by giving the shock more fluid and more surface area to cool through.

For daily-driven vehicles and mild trail use, a non-reservoir coilover is fine — the shock never gets hot enough to fade. For sustained high-speed desert running, repeated rock crawling, or towing on rough roads, a remote reservoir unit is the correct choice. ICON's Stage 3+ and Fox's 2.5 Performance Elite both use remote reservoirs.

Spring Rate Selection for Coilovers

Spring rate — measured in pounds per inch (lb/in) — determines how much the spring compresses for a given load. A spring rated at 400 lb/in compresses 1 inch under 400 pounds of force. The correct spring rate for a coilover depends on three things: the vehicle's corner weight (the actual weight over that corner of the suspension), the intended use (comfort bias vs performance bias), and whether the vehicle carries loads (towing, cargo).

Most coilover manufacturers publish recommended spring rates for each vehicle application. These are starting points — a Ram 2500 that tows a fifth wheel regularly needs a higher spring rate than the same truck used only as a daily driver. Mismatch the spring rate and the coilover will either sag under load (rate too soft) or ride extremely harshly over small road imperfections (rate too stiff). Start with the manufacturer's recommended rate for your use case.

Coilover Maintenance

Coilovers require less maintenance than most owners expect, but they are not maintenance-free. Inspect the shock shaft for scoring or pitting annually — scored shafts accelerate seal wear. Inspect the spring seat and lower perch for corrosion in climates with road salt. Rebuild intervals depend on use: a daily-driven street vehicle can run 50,000–100,000 miles between rebuilds; a trail vehicle with frequent full-travel articulation should be inspected at 25,000 miles and rebuilt when damping feels inconsistent. Most manufacturers offer rebuild services or sell rebuild kits.

Frequently Asked Questions

Do coilovers replace the spring and shock separately?

Yes. A coilover integrates the coil spring onto the shock absorber body as a single assembly. You remove the factory spring and shock separately, then install the coilover in their place.

Do I need an alignment after installing coilovers?

Yes, if the installed ride height differs from stock. Even a 0.5-inch change in ride height shifts the camber and caster. Always get an alignment after coilover installation.

What is the difference between single-adjustable and double-adjustable coilovers?

Single-adjustable units have one damping dial that adjusts both compression and rebound together. Double-adjustable units have separate dials for each direction — more precise tuning capability but more expensive and requires more knowledge to set up correctly.

Can I use Bilstein coilovers with a Carli Suspension system?

Yes. Carli Suspension specifies Bilstein 5160 and 8112 coilovers in their Ram 2500 and Ford F-250 systems. Bilstein's monotube construction provides the consistent damping Carli's geometry-corrected systems require.

What coilovers are best for a lifted Jeep Wrangler JL?

ICON Stage 2 or Stage 3 coilovers are the strongest option for Jeep Wrangler JL. ICON is made in the USA, provides the best JL fitment coverage, and their 2.5-inch remote reservoir units handle sustained trail use without fade.

Coilover Break-In Period

New coilovers have a break-in period of approximately 500 miles of driving. During break-in, the seals seat, the fluid fully distributes, and any initial stiffness from storage dissipates. Do not make final damping or ride height adjustments until after the break-in period — the coilover will behave slightly differently after the first 500 miles than it does straight out of the box. After break-in, re-check the ride height, torque the lower spring perch lock ring to spec, and then dial in the damping for your use case. Most customers find the coilover settles roughly 0.1–0.3 inches from the initial set ride height after break-in as the seals fully compress and the spring settles onto its perch.

After the first trail use, inspect the shock shaft for any surface scoring from debris contact. A shaft guard or stone deflector can prevent scoring on vehicles that see heavy rock crawling or brush exposure.
